The Sub-Second Verdict: How Goal-Line Technology Solved Football’s Most Controversial Problem
The system operates based on strict requirements set by the International Football Association Board (IFAB). Multiple high-speed cameras (up to 14 per goal) or sensors in goalposts and balls track the ball's position in 3D with millimeter precision, processing data via algorithms in under one second.
Goal-Line Technology (GLT) is one of the most straightforward and universally accepted technological implementations in football (soccer). Its entire purpose is to answer one question: Did the entire ball cross the entire goal line?
It was developed to eliminate the kind of controversial “ghost goals” that historically plagued the sport, most notably Frank Lampard’s disallowed goal against Germany in the 2010 World Cup.
Here is a breakdown of how it works, the types of systems used, and its impact.
How Goal-Line Technology Works
The system operates based on strict requirements set by the International Football Association Board (IFAB). Multiple high-speed cameras (up to 14 per goal) or sensors in goalposts and balls track the ball’s position in 3D with millimeter precision, processing data via algorithms in under one second. Systems like Hawk-Eye create real-time 3D models, while GoalRef uses magnetic fields; AI enhances accuracy by distinguishing the ball from obstructions and learning from past events. A vibration and “GOAL” or “NO GOAL” signal reaches only the referee’s watch, with no broadcast to players or fans.
Goal-Line Technology
The Mechanism
There two Main Approved Systems to Goal-Line Technology (GLT). These two systems are approved by FIFA and IFAB as follows:
1. Camera-Based Systems (e.g., Hawk-Eye, GoalControl)
This type uses a network of high-speed cameras (usually 7 to 14 cameras) strategically placed around the goalmouth at various angles (often mounted on the stadium roof or catwalk). The cameras track the ball’s position continuously at a very high frame rate (up to 500 frames per second). A central computer uses triangulation to process the images from the cameras and generate a precise 3D model of the ball’s location in real-time. The software calculates the exact moment the entire curvature of the ball crosses the back edge of the goal line. The system can track the ball even if it is partially obscured by players’ bodies.
Once the ball fully crosses the line, the system sends an encrypted “GOAL” alert to the referee’s watch instantly.
2. Magnetic Field Systems (e.g., GoalRef, Cairos)Technology

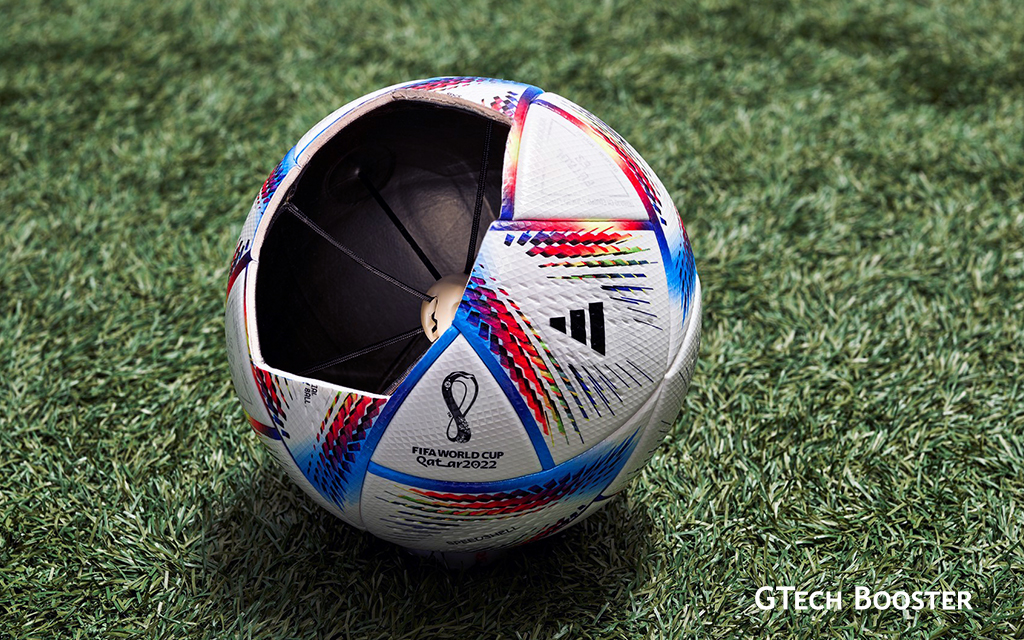

Relies on magnetic field and sensors. Thin cables or antennas are embedded underneath the goal area and/or inside the goalposts and crossbar, generating a low-frequency magnetic field. The match ball contains a small electronic chip or sensor.When the sensor inside the ball enters the magnetic field (i.e., when the ball is near the goal line) and then passes completely through the field (i.e., crosses the line), the disturbance is detected.A signal is instantly sent to the central computer.
A “GOAL” signal is triggered on the match officials’ watches within a second. This virtually eliminates arguments over whether a ball crossed the line in most cases, ensuring goals are awarded or disallowed accurately.
Impact on the Game
Instantaneous Decision
Unlike VAR, which can take time for review, GLT provides an answer in less than a second, maintaining the flow and intensity of the game.
Referee Support
It removes immense pressure from officials on one of the most difficult decisions in the game, allowing them to focus on other aspects of play.
UEFA employs a hybrid model combining Hawk-Eye cameras with ball sensors for error-proof detection, even when views are blocked. FIFA-approved for major tournaments since 2012, GLT achieves 99.9% accuracy after rigorous testing and integrates with VAR for goal reviews. Confederation of African Football (CAF) does not currently use goal-line technology (GLT) in its major competitions like the Africa Cup of Nations (AFCON).
CAF prioritizes other infrastructure like VAR in select matches, but GLT adoption lags due to costs and infrastructure challenges across African stadiums. Fan discussions and posts highlight calls for GLT in AFCON and CAF Champions League, noting its absence leads to controversies resolved via VAR rooms instead. As of late 2025, no official CAF confirmation exists for GLT in upcoming AFCON Morocco 2025.
VAR (Video Assistant Referee) is a match official team that uses video footage to assist the on-field referee in reviewing key decisions during football matches, ensuring accuracy without replacing the referee’s authority.
The use of GLT is not mandatory for all football competitions. It must be stipulated in the competition rules, and only FIFA-certified systems can be used. Major leagues (like the Premier League and Bundesliga) and major tournaments (like the FIFA World Cup) use it, but many lower-tier leagues do not due to the high installation and maintenance cost. It applies solely to the goal line. It must be 100% accurate. The decision must be confirmed within one second of the ball crossing the line. The signal is transmitted only to the match officials (referee and assistant referees) via a vibration and visual alert on a specially designed watch.
